Bradley 234-11 Commercial Paper Towel Dispenser/Waste Receptacle, Surface-Mounted, Stainless Steel

✅ High-Capacity Dispensing – Accommodates 800 multifold or 600 C-fold paper towels, reducing the need for frequent refills.

✅ Integrated 12-Gallon Waste Receptacle – Features a removable stainless steel waste container secured with a tumbler lock for easy maintenance.

✅ Durable Stainless Steel Construction – Made from 22-gauge stainless steel with a satin finish, ensuring long-lasting durability and a sleek appearance.

About the Bradley 234 Combination Unit

This is the surface-mounted version of the Bradley 234 combination towel dispenser and waste receptacle. The cabinet mounts directly to the face of the finished wall — no wall cavity or cutting required — making it the easiest to install and the go-to choice for block, concrete, or tile walls and retrofit projects. The 234 combines paper towel dispensing and waste collection into a single unit, conserving wall space while maintaining a clean, integrated restroom appearance. Constructed from Type 304 stainless steel with an all-welded cabinet, it is built to withstand high-traffic commercial environments.

Key Features & Applications

• Type 304 Stainless Steel — 22-gauge cabinet with architectural satin finish and 18-gauge door for added strength

• All-Welded Construction — Provides long-term durability in demanding environments

• Dual Function Design — Combines towel dispensing and waste receptacle in one space-saving unit

• Towel Capacity — Holds up to 800 multifold or 600 C-fold paper towels

• 12-Gallon Waste Receptacle — Removable stainless steel container simplifies maintenance

• Dual Tumbler Locks — Help prevent tampering and unauthorized access

• Liner Compatible — Designed for use with the Bradley P11-004 vinyl liner

• Surface Mounting — Mounts to the finished wall face with no cutting required

Ideal For — office buildings, healthcare facilities, schools, airports, and other high-traffic commercial restrooms

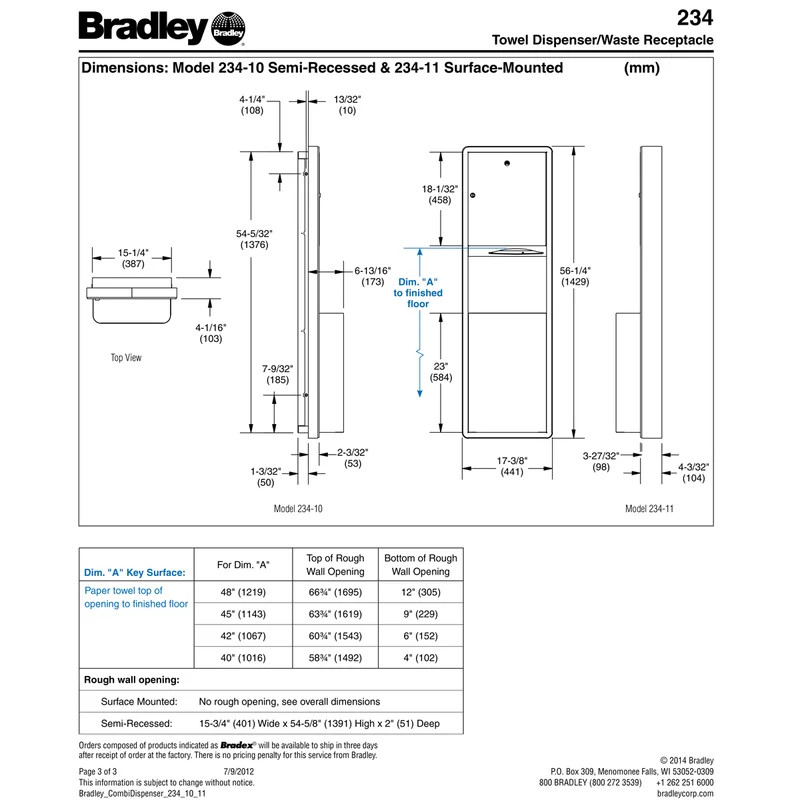

Choosing Your Mount — Recessed vs. Semi-Recessed vs. Surface

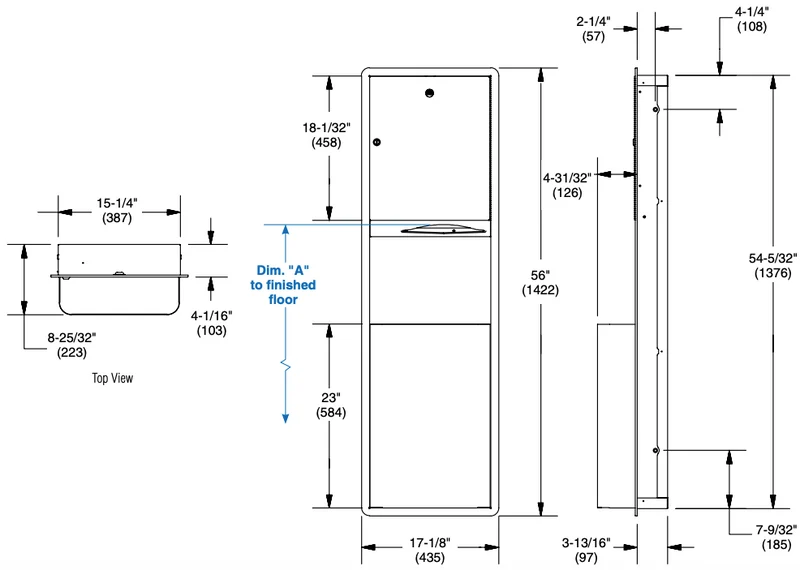

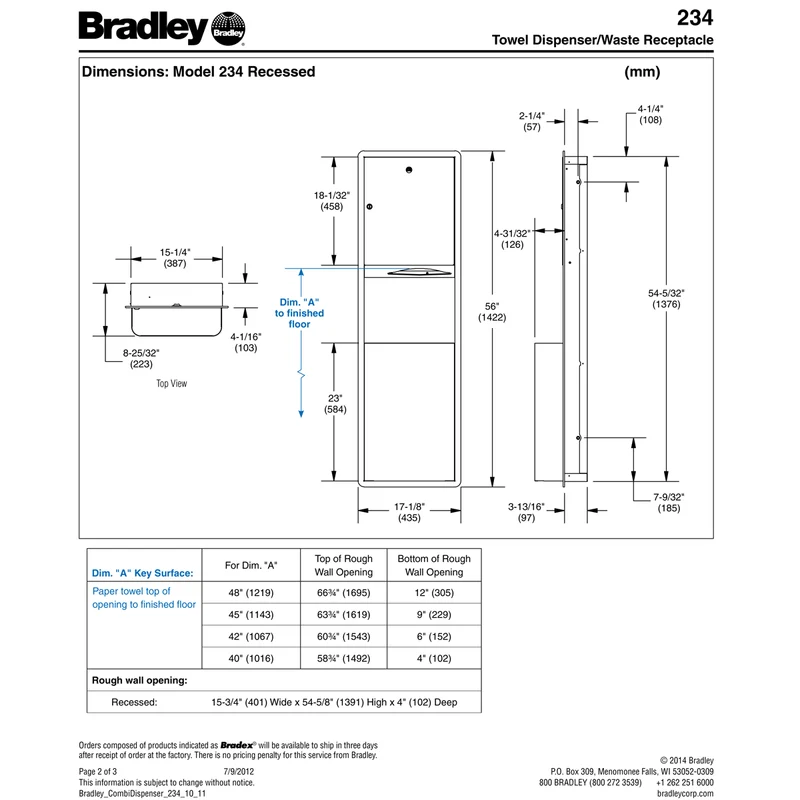

Recessed (234-00): Cabinet installs inside the wall cavity; only a slim trim flange sits proud of the wall. Flushest, lowest-protrusion option — ideal for corridors and high-traffic areas, where wall depth, framing, and project conditions allow.

Semi-Recessed (234-10): Part of the cabinet sets into the wall, part projects out. The middle ground when the wall can't take a full recess but you still want to reduce protrusion.

Surface (234-11): Cabinet mounts entirely on the finished wall face — no cutting required. Simplest to install and best for solid walls or retrofits.

Compare all mounting options:

Bradley 234-00 Recessed

Bradley 234-10 Semi-Recessed

You're viewing Bradley 234-11 Surface

Frequently Asked Questions

What paper towel types does the Bradley 234-11 accept?
The unit accommodates up to 800 multifold or 600 C-fold paper towels.

Does surface mounting require cutting into the wall?
No. The cabinet mounts directly to the finished wall face, so no wall cavity or cutting is required — making it well suited to block, concrete, or tile walls and retrofits.

What liner should I use?
Bradley recommends the P11-004 vinyl liner for the 12-gallon waste container. Bradley P11-004 Vinyl Liner

What key does this unit use?
It uses the standard Bradley 2055 key. Bradley P15-398 Service Kit (5 Keys)

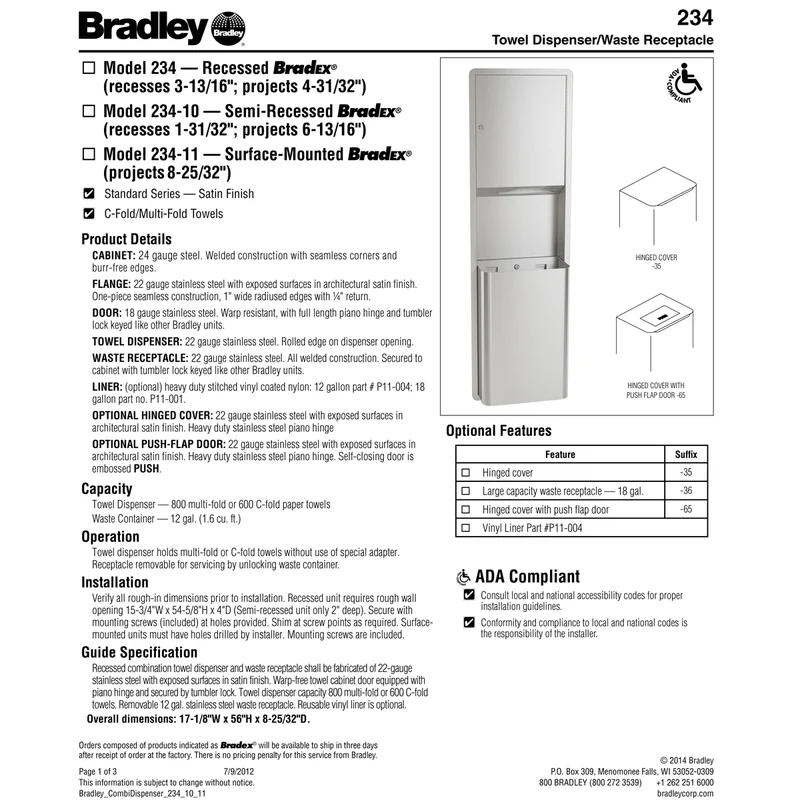

Bradley Towel Dispenser/Waste Receptacle Combination Unit. 22 gauge stainless steel cabinet with exposed surfaces in architectural satin finish. Welded construction with seamless corners and burr-free edges. 18 gauge stainless steel door. Concealed, full-length stainless steel piano hinge. Door has two tumbler locks. Surface mounted. Dispenses 800 multifold paper towels. Dispenses 600 C-fold paper towels. 12 gallon waste receptacle.
