Bobrick B-3803 Combination Commercial Paper Towel Dispenser/Waste Receptacle, Recessed-Mounted, Stainless Steel

Bobrick TrimLine Series

✅ Satin-finish stainless steel

✅ Door has 90 degree return, conceals flange

✅ Dispenses 600 C-fold, 800 multi-fold or 1100 single-fold towels

✅ Removable, leak-proof, 6.3-gal (24-L) waste container

✅ Rough Wall Opening: 11-1/2" W, 53 5/8" H, 5-3/4" min depth (290 degree x 1360 x 145mm)

Satin-finish stainless steel. Door has 90 degree return, conceals flange. Dispenses 600 C-fold, 800 multifold or 1100 single-fold towels. Removable, leak-proof, 6.3-gal. (24-L) waste container. Rough Wall Opening: 11 1/2" W, 53 5/8" H, 5 3/4" min. depth (290 degreex 1360 x 145mm).

Why Choose The Bobrick B-3803?

The Bobrick B-3803 TrimLineSeries™ is a recessed combination paper towel dispenser and waste receptacle designed for high-traffic commercial restrooms that need high capacity, durable construction, and a clean architectural appearance. By combining a paper towel dispenser and waste receptacle in one recessed cabinet, it helps save wall space while maintaining a professional look in schools, office buildings, airports, healthcare facilities, and other public restrooms.

High-Capacity Paper Towel Dispensing

The B-3803 holds up to 600 C-fold, 800 multifold, or 1,100 singlefold paper towels. Its versatile design allows facilities to switch between towel types without additional adapters or separate towel trays.

TrimLineSeries™ Low-Profile Design

As part of Bobrick’s TrimLineSeries™, the B-3803 features a recessed cabinet that projects only 9/16" (14mm) from the finished wall face. This low-profile design helps create a clean wall line and reduces projection into compact or busy restroom spaces.

Type-304 Stainless Steel Construction

The unit is constructed from heavy-gauge, 18-8, Type-304 stainless steel with all-welded construction. The door is made of 18-gauge stainless steel with a 9/16" 90° return for rigidity and is attached with a full-length stainless steel piano hinge.

TowelMate® Included Standard

The B-3803 comes standard with Bobrick’s TowelMate® system. This includes a 90° return towel guide and a nylon rod assembly that help prevent towels from bulging or falling forward when the door is opened. TowelMate® supports one-at-a-time dispensing and helps reduce unnecessary paper towel waste.

Removable 6.3-Gallon Waste Container

Maintenance is simplified with a removable, leak-proof rigid molded plastic waste container. The container holds 6.3 gallons / 24 liters and lifts out for emptying after the cabinet door is unlocked.

Secure Two-Lock Door

The unit features two flush tumbler locks keyed like other Bobrick washroom accessories. A stainless steel cable door-swing limiter helps prevent the door from swinging too wide during service.

Frequently Asked Questions

What Are The Rough Wall Opening Requirements For The B-3803?

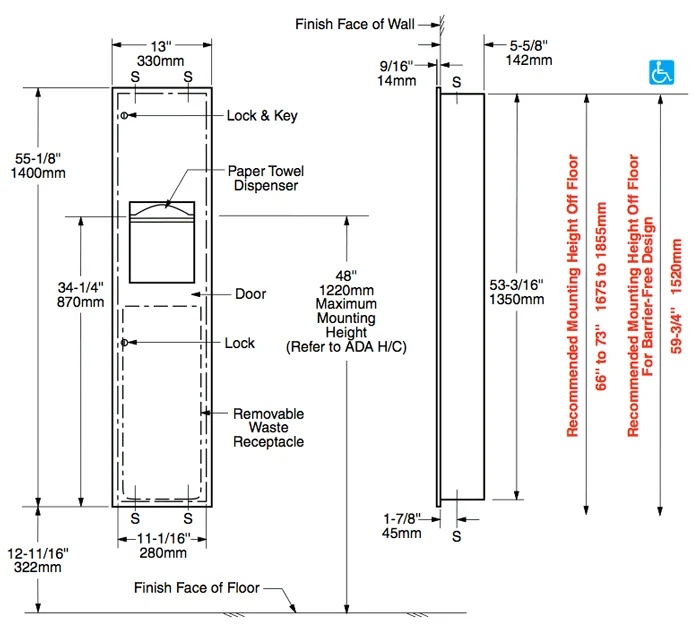

The Bobrick B-3803 requires a framed rough wall opening of 11-1/2" W x 53-5/8" H. The minimum recessed depth required is 5-3/4" from the finished wall face.

How Many Paper Towels Can The B-3803 Hold?

The unit holds up to 600 C-fold, 800 multifold, or 1,100 singlefold paper towels. No additional adapters or separate towel trays are required to switch between these towel formats.

Is The Bobrick B-3803 ADA Compliant?

The B-3803 can be installed to support ADA-accessible design when mounted at the proper height. To meet ADA reach-range requirements, the towel dispenser opening should be located no higher than 48" above the finished floor. Always verify final mounting height with current ADA, ICC A117.1, state, and local code requirements. California projects may require a lower dispenser-opening height.

What Is The Capacity Of The Waste Receptacle?

The B-3803 features a 6.3-gallon / 24-liter removable waste container. It is made of leak-proof rigid molded plastic for easy service and cleaning.

What Finishes Are Available?

The standard B-3803 has a satin stainless steel finish. It is also available in matte black as model B-3803.MBLK for projects that require a darker architectural finish.

How Do I Service The Waste Container?

After unlocking the door, maintenance staff can lift the waste container out of the cabinet for emptying. The unit includes two flush tumbler locks keyed like other Bobrick washroom accessories.

What Is The TowelMate® Feature?

TowelMate® is included standard with the B-3803. It consists of an internal towel guide and nylon rod assembly that help keep paper towels organized and support one-at-a-time dispensing.
